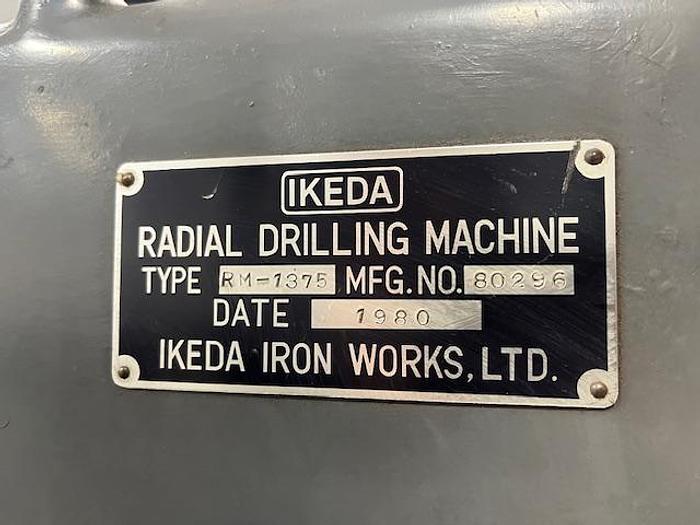

IKEDA Radial Arm Drill Press - 1980, 14" column, 4' arm- Model: RM-1375

IKEDA Radial Arm Drill Press - 1980, 14" column, 4' arm- Model: RM-1375

Contact us for price

Wausau, WI

orCall +1 715-675-6309

Description

IKEDA Radial Arm Drill Press - 1980, 14" column, 4' arm

Model: RM-1375


Column To Spindle Base (Min/Max): 12.5″ / 54.5″
Column Diameter: 13-5/8″
Arm Length: 4′
Spindle Stroke: 14.5″
Usable Space Of Base: 57.25″ X 36″
Height Of Base: 8.5 In
Bearing Diameter: 2-5/8 In
Quill Diameter: 3-5/8 In
Spindle Speeds: (12) 30 – 1,500 Rpm
Spindle Taper: Morse No. 5
Spindle Feeds: (9) 0.003″ – 0.40″
Motor: 7.5 Hp
Approx. Machine Weight: 8,000 Lbs.


Specifications

ManufacturerIKEDA
ModelRM-1375
Year1980
ConditionUsed
